Monday, April 26, 2010

7_B

B 7 String

Zebra and wenge neck attached to a super thin Sapele/Zebra topped body with hipshot parts and custom pickups.
Aiming for a dark sounding 7 string light enough to enjoy.

Neck : Zebra/Wenge
Fretboard : Wenge
Scale : 25.5
Frets : 24
Trussrod : ALLPARTS

Body : Sapele/Zebra (33mm)
Tuners : Hipshot
Pickups : Diablo 7 Strings
Bridge : Hipshot
Electronics : 1 Vol/Push-Pull

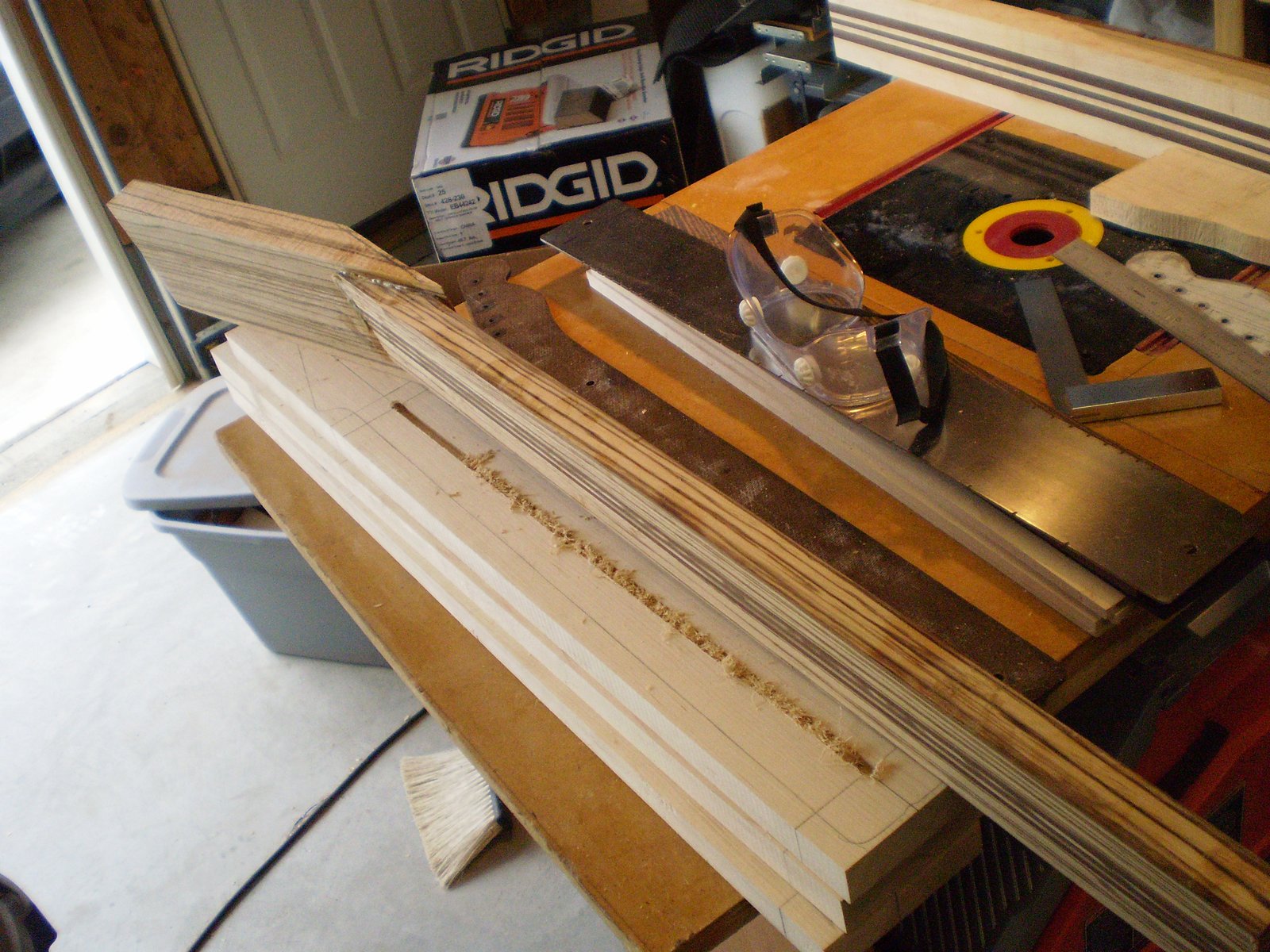

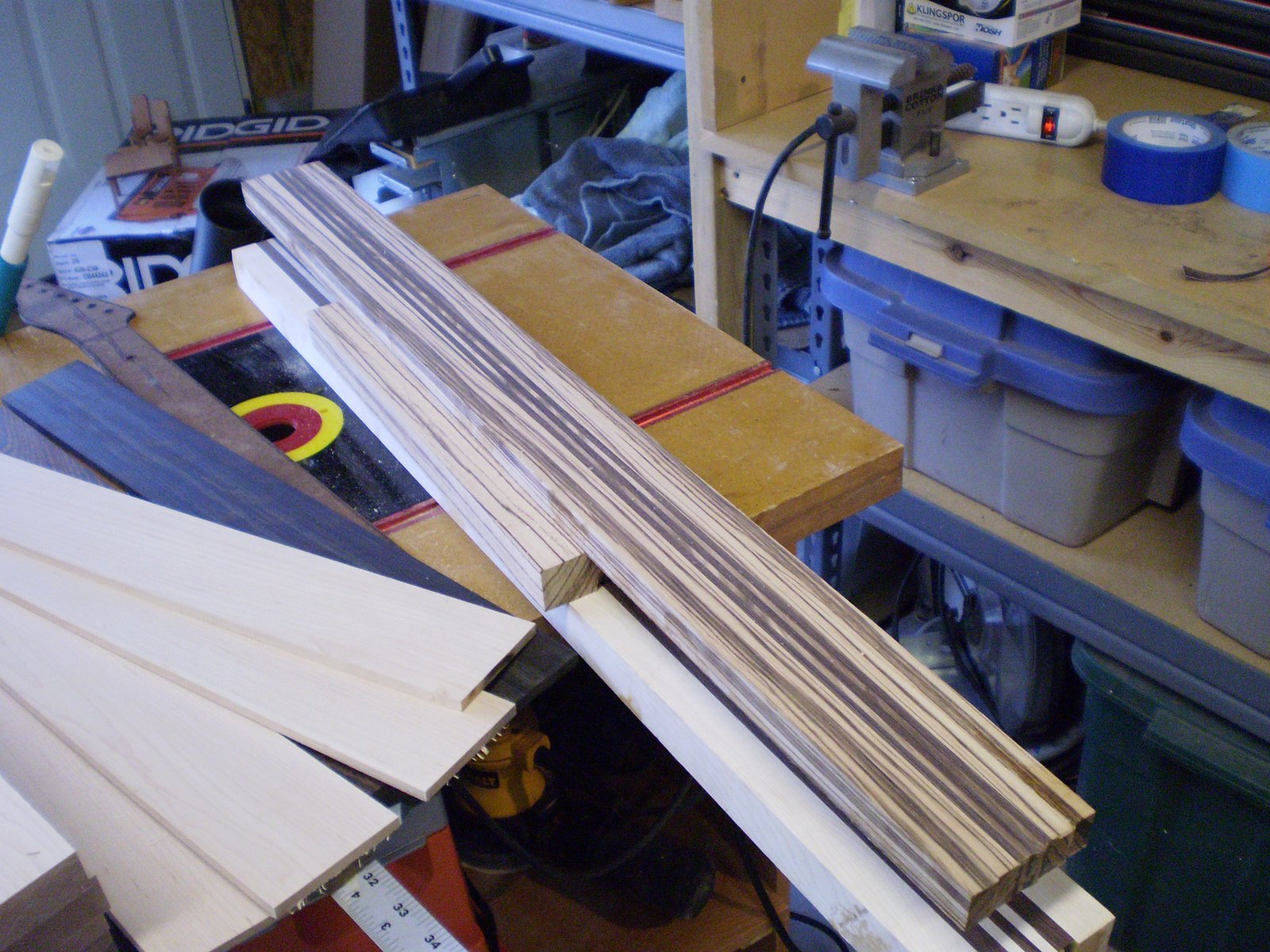

Neck Blank finished up. The experiment here is to not waste any wood. I am trying a super thin 1" neck blank for construction. Normally I use 1.5 in and cut the headstock scarf from the scrap on the back leaving almost no waste. This time I made the blank 3' long and planned to get the scarf from the same piece. However since this is a seven string I changed my mind of the headstock design and used a solid piece of zebra for the headstock.

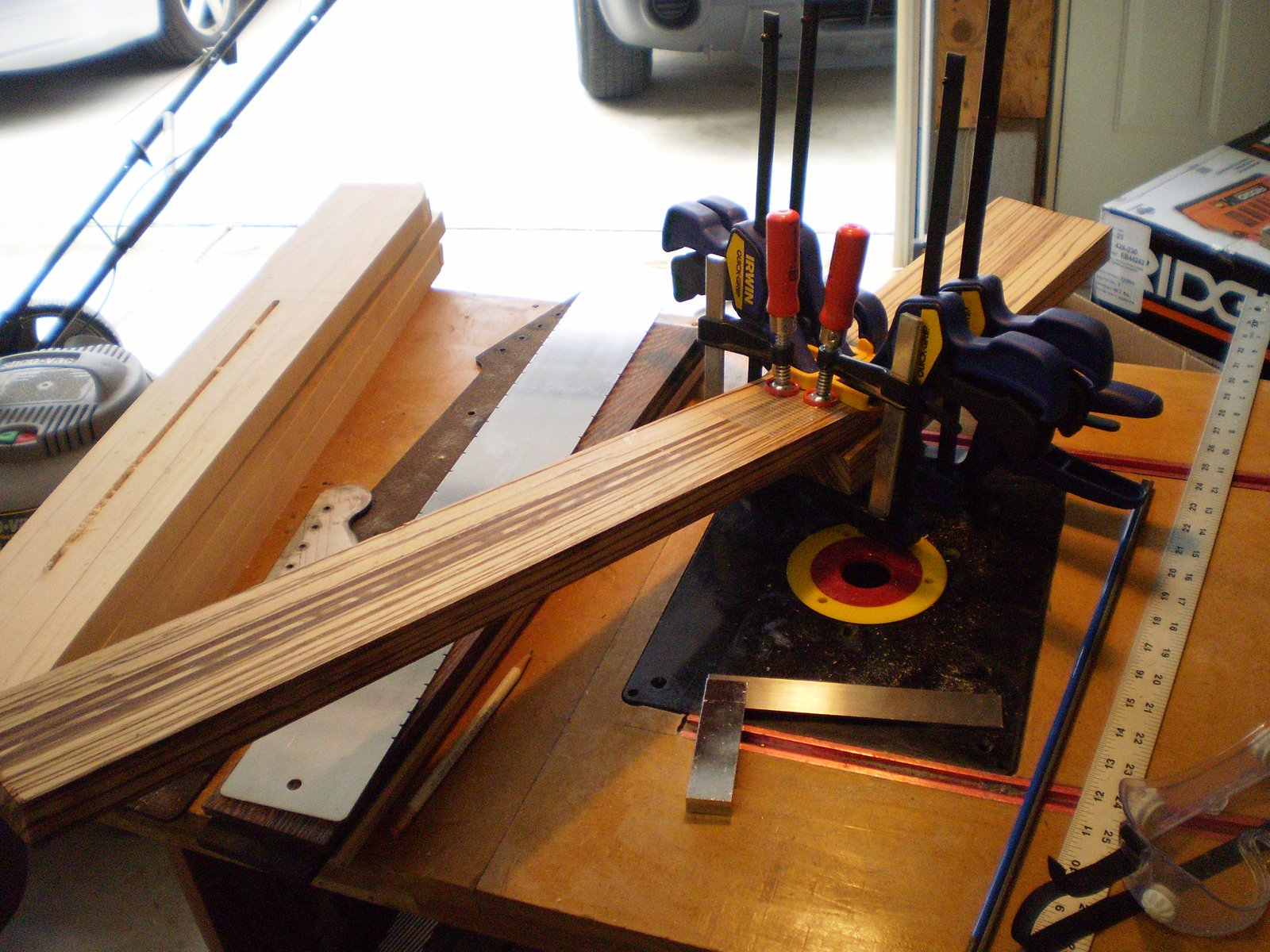

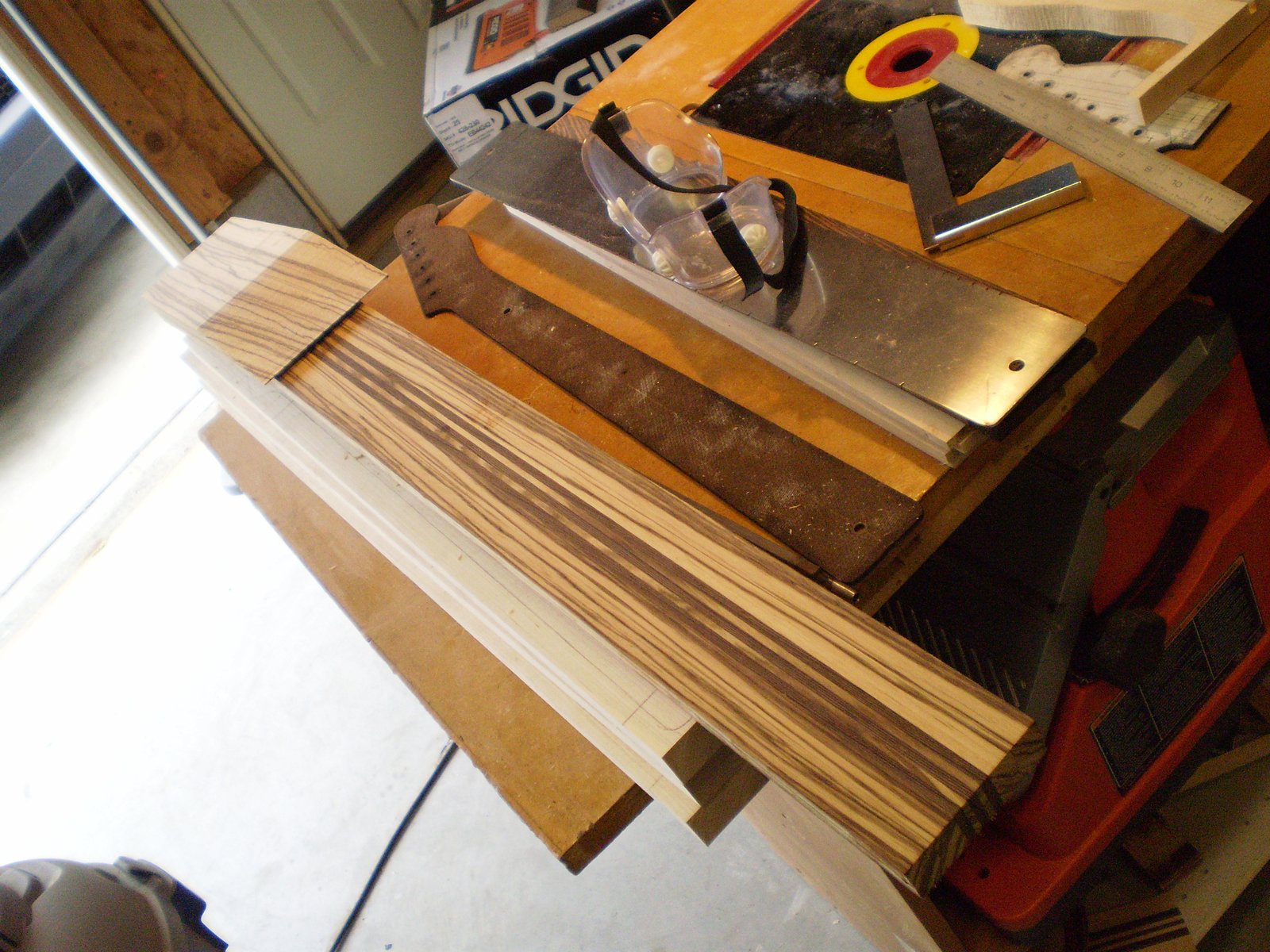

Scarfing the headstock was different on this one as I only used one accent line and the headstock is a solid piece. It tried to move on my several times but I was able to get it to tak up and then clamped.


Out of the clamps, through the bandsaw, and onto the planar. I really dislike neck scarfs because I don't have a large belt sander it always takes more work to clean them up.

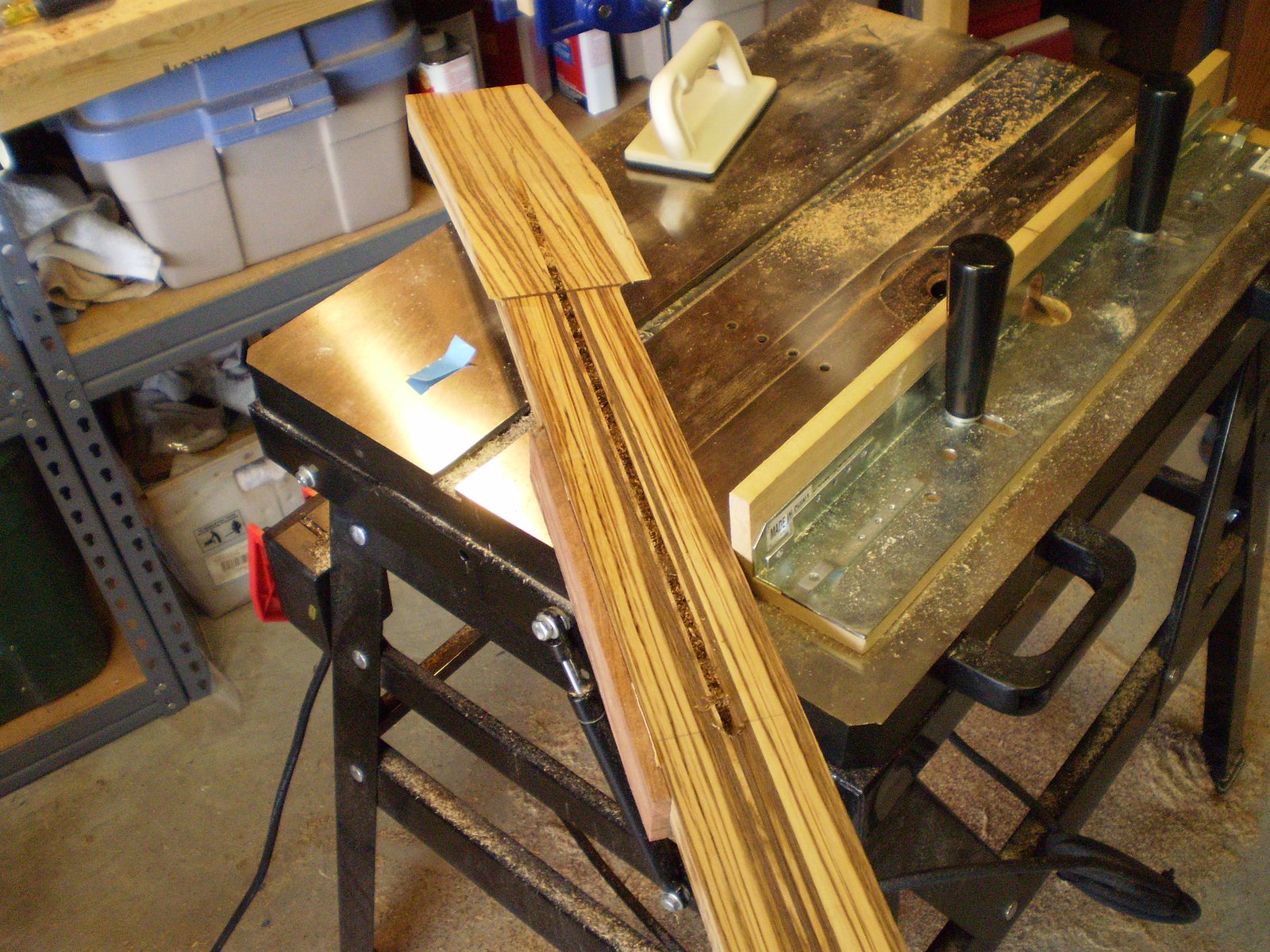

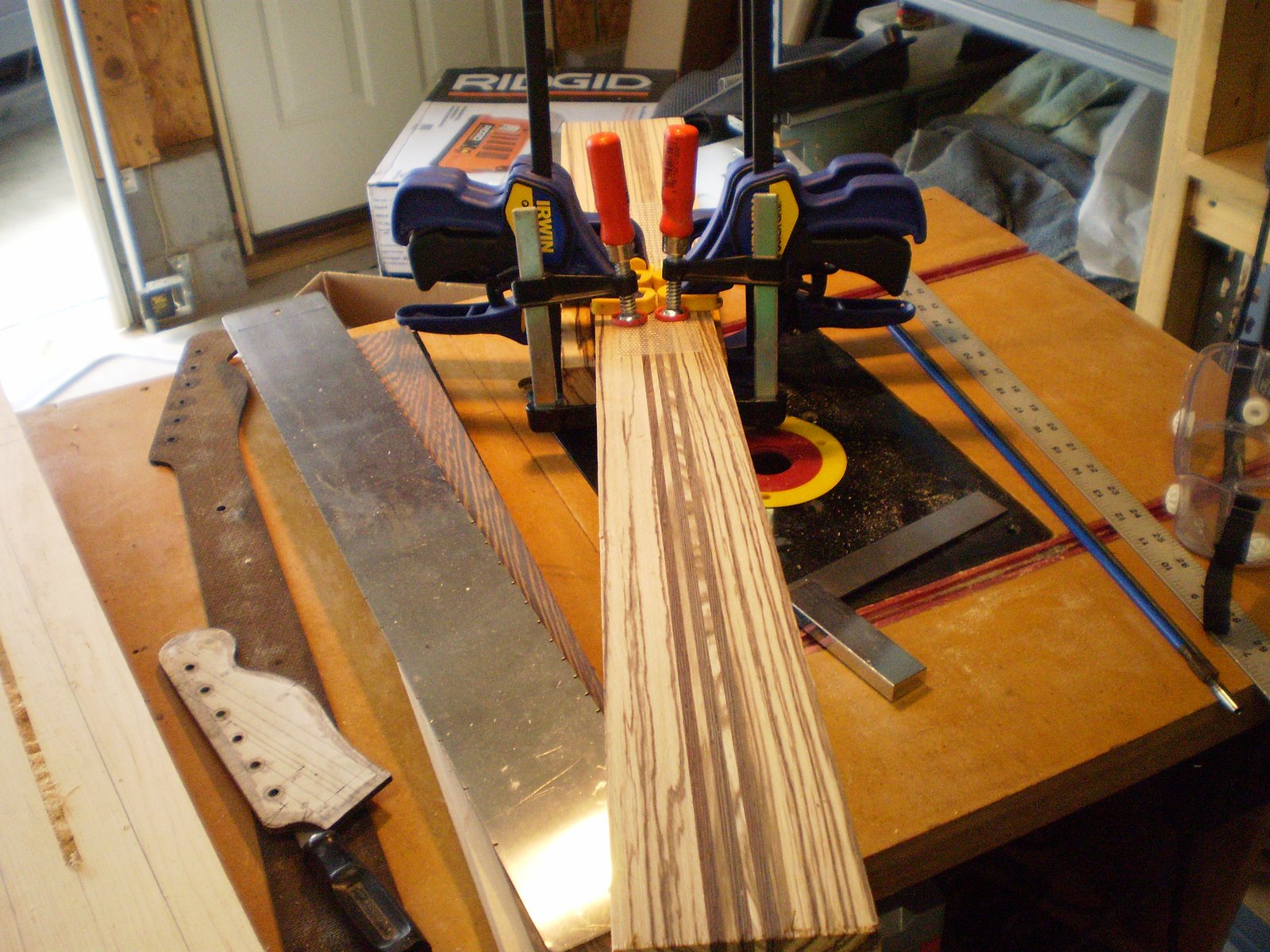

Trussrod route needed a spacer on the edge so I could use the router table. Since the headstock is one piece...

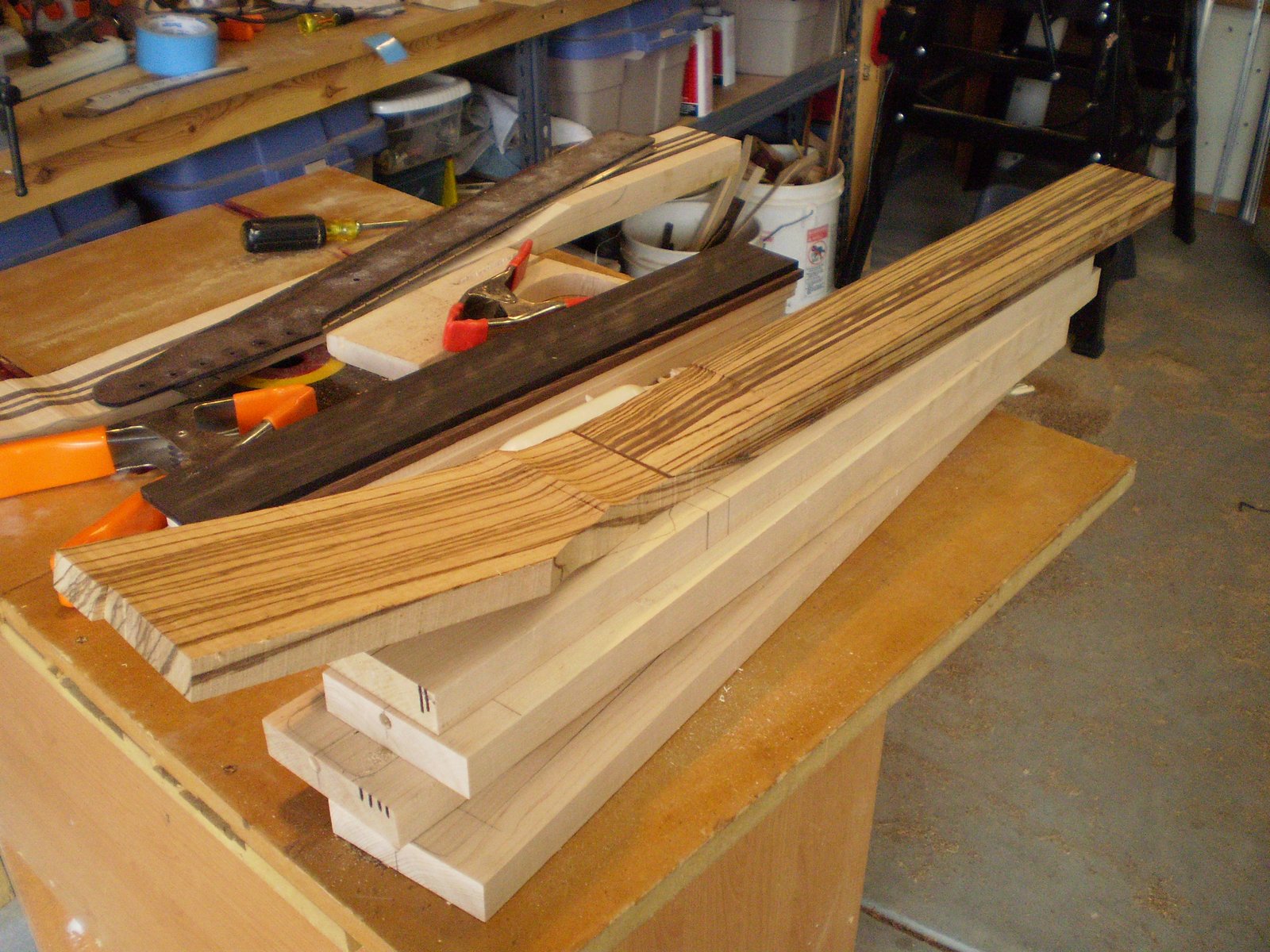

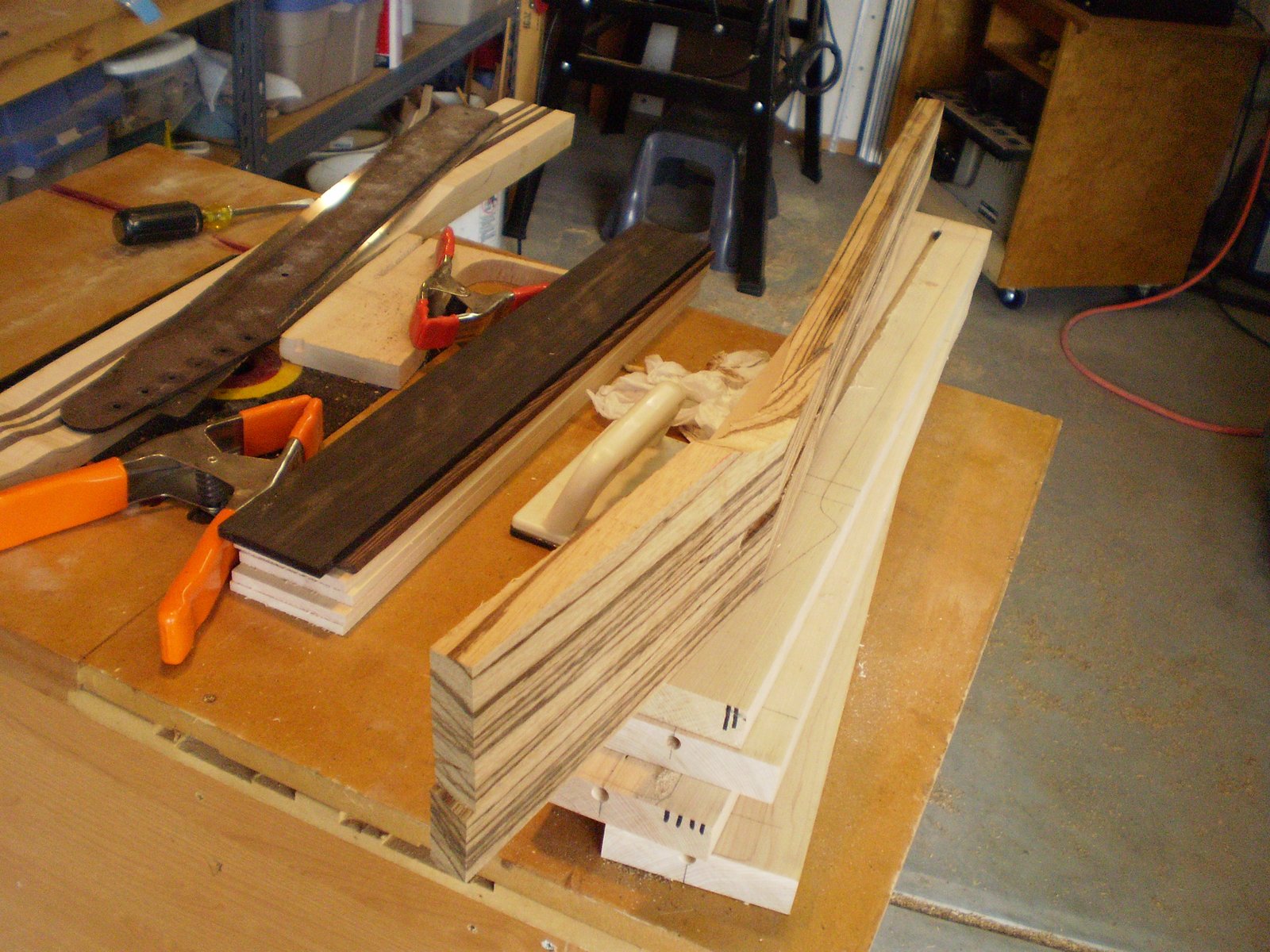

On to the bandsaw for a rough profile. I will start using the rigid spindle sander soon to clean this up.

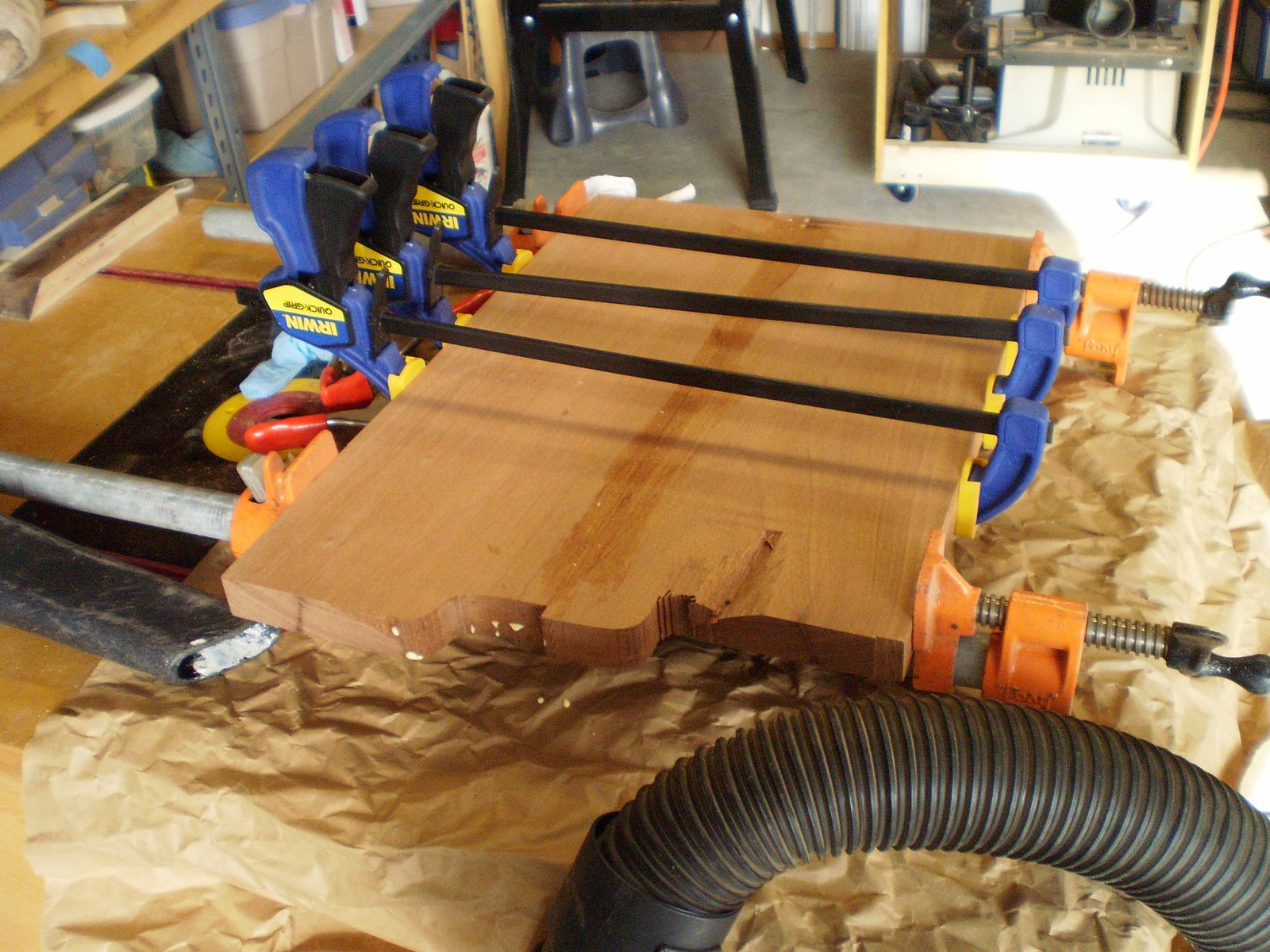

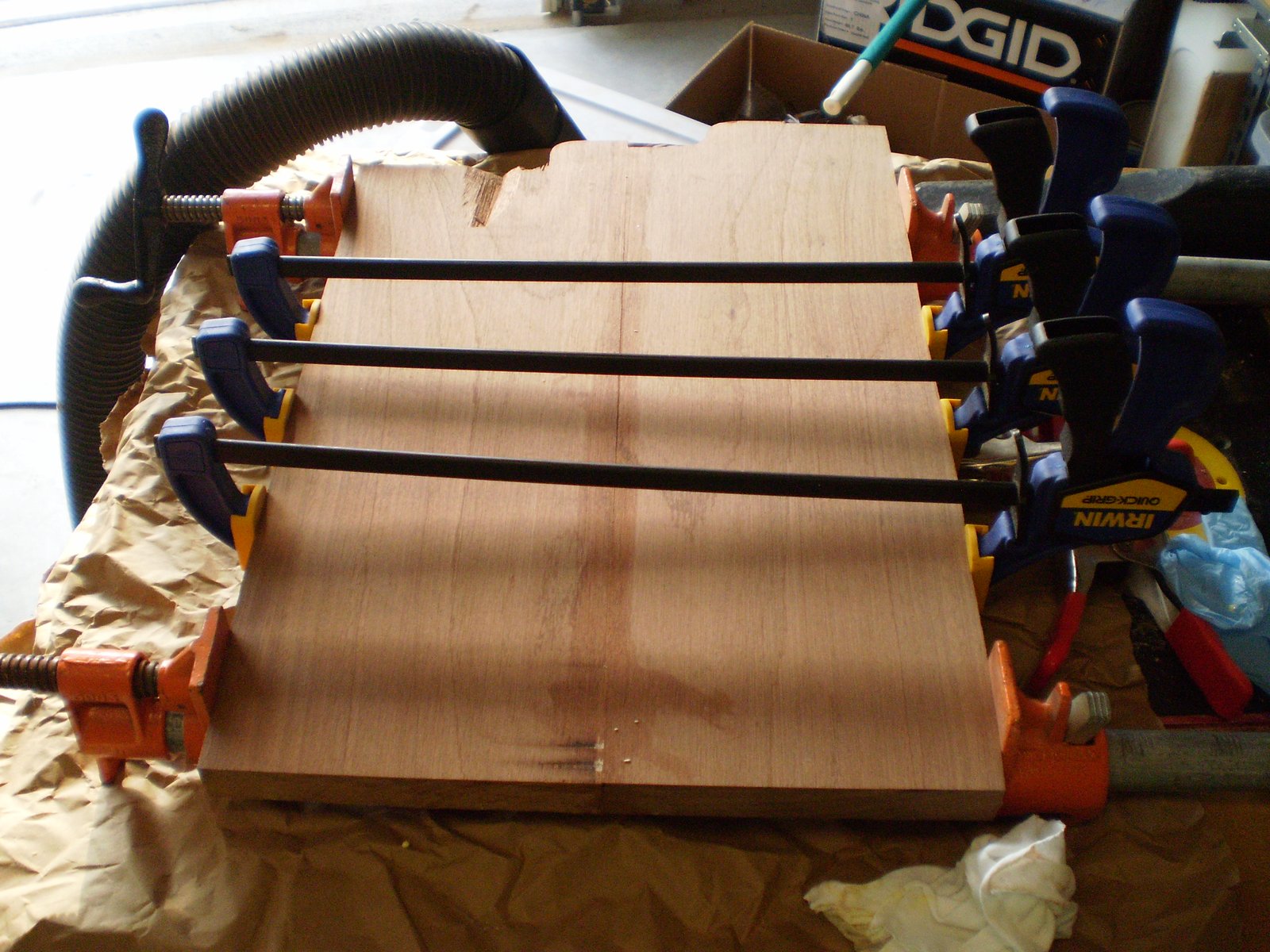

Sapele body blank glued up. Since this is an experiment I was not wasting my limba or african mahogany on it. I am trying to get a certain sound and hope to reproduce my personal zebra/mahogany strat that I built 20 years ago. Since the SG came out very close in sound and it was Sapele I think that this is a decent substitute for african mahogany. Also this body is going to be rail thin... 33mm at best. I am trying to keep the weight low without chambering it.
